A burner heats stored water. The tank holds the reserve; the burner replenishes it. The vent carries combustion exhaust away. Some models use a fan, so their vent and electrical needs differ.
Explore the gas tank in 3D →Salt Lake Valley water heater repair
A cold shower. Water on the floor. One more thing you didn’t need today. Tell us what your heater is doing. We’ll explain the options and price before work starts.
Mountain Man Plumbing · Tyler Nerdin, Utah Master Plumber, Lic. #12992295-5501. Equipment references are linked beside the lessons.
Your water-heater hub / Start with what you need

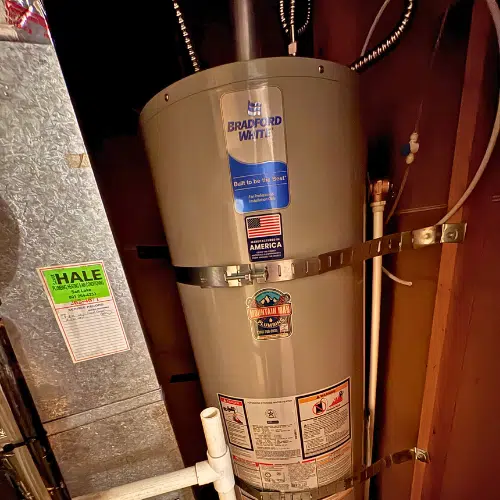

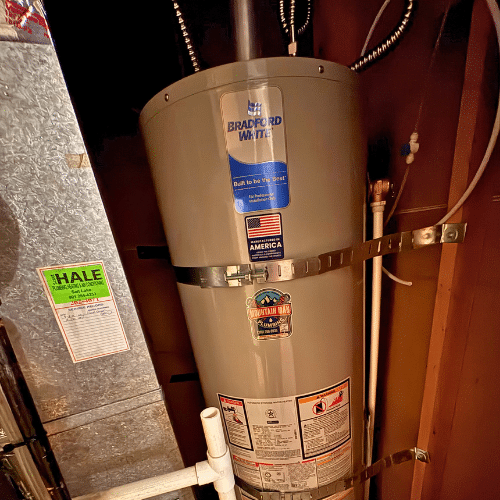

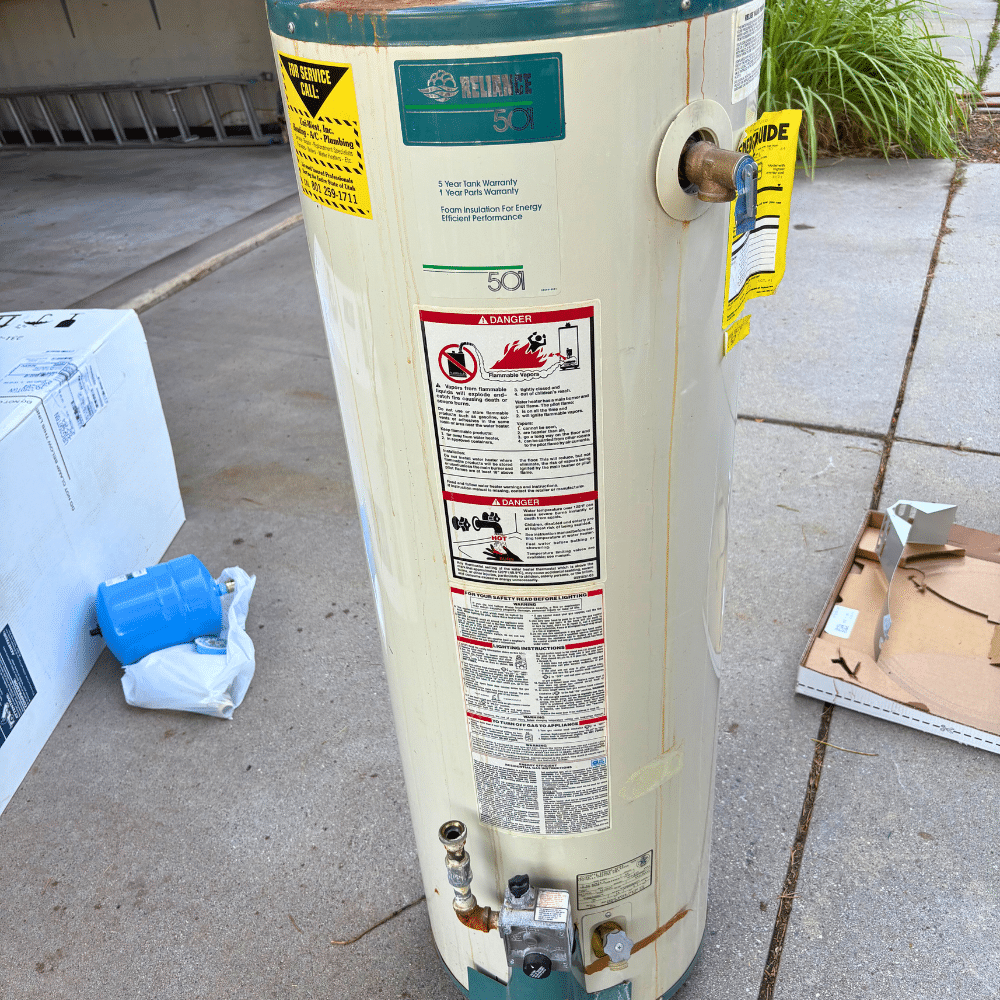

Recent jobs, real photos
These are published job pages with our photos. Open one to see the equipment, the problem, and the finished work.
Understand your equipment
Start with the kind of heater, then follow the symptom. Each guide explains the terms as you meet them.
A burner heats stored water. The tank holds the reserve; the burner replenishes it. The vent carries combustion exhaust away. Some models use a fan, so their vent and electrical needs differ.
Explore the gas tank in 3D →Heating elements transfer electrical energy into stored water. Many two-element models heat the upper portion first, then the lower portion. A short warm shower can be a different failure from no heating at all.
Follow the electric-heater diagnosis →A fan and compressor move heat from room air into a tank. Many also have resistance elements for additional heat. Available air, operating mode and room temperature affect performance.
Check whether the space suits it →Water moving through an exchanger triggers heating. A gas model burns fuel; an electric model uses elements. It has a limit on how much water it can heat each minute, even if it can keep running.
Follow a tankless heating cycle →A tank heated by a boiler is an indirect water heater. Its coil receives boiler heat; its pump and heating controls are part of the diagnosis. Find the correct troubleshooting path →
Rheem: how two-element electric tanks operate ↗ENERGY STAR: heat-pump installation considerations ↗Read the manufacturer and technical references behind this lesson. For service settings, open the manual for your full model number.
Useful tools
Open the label, address, code, or estimate tool that fits your question.
What we check on the job
The water lines, vent, pressure equipment, drain, and space around the heater can change the repair.
Inside your water heater / Explore in 3D
Choose Tank or Tankless. Open the heater, select a part, or watch how it heats the water.
A burner heats the stored water. Explore the tank, burner and connections around it.
Drag with one finger to turn. Pinch to zoom.Drag to turn the heater. Hold Ctrl or Command while scrolling to zoom.
The 3D heater opens when this section comes into view.
Tap a number to highlight a part and see what it does. This cutaway follows the Bradford White RG2F40S6N fan-assisted design; other gas tanks use different burners and vents. See the reference manual ↗
This model recovers extra heat from its exhaust.
A hot tap starts a sequence: detect water, establish air movement, light the burner, then regulate heat. Explore the parts that make each step possible. Condensing means recovering enough exhaust heat to turn some of its water vapor into liquid.
The 3D cutaway loads here. The part explanations below also work without 3D.
Incoming water Heat-recovery path Main heating pathColored paths are teaching overlays
The burner waits for a hot-water draw. Models equipped with recirculation or freeze protection can also run those functions while the taps are closed.
01 / Detect the demand
This sensor tells the control that water is moving. A tiny trickle may be below the model’s minimum flow needed to start heating.
What a technician checks: compare actual flow with the control’s flow reading. A trickle may simply be too small to start heating. An inlet restriction or mixing problem may change the amount passing through it.
02 / Make the heat
The gas valve controls fuel entering the burner. Ignition lights the air-and-gas mixture, and the control adjusts the flame as water demand changes.
What a technician checks: an ignition failure needs evidence about fuel delivery, air, ignition and flame detection. We check the gas supply while the heater is running, then follow the model’s ignition checks. A gas line can show pressure with everything off and still fall short under load.
03 / Transfer the heat
A heat exchanger transfers heat through metal into the water. The drinking water and combustion gases stay in separate passages.
The technician measures inlet and outlet temperatures alongside flow. That shows how much heat reaches the water and helps narrow a low-temperature complaint to demand, heat transfer, controls or mixing farther along the pipes.
04 / Recover more heat
Incoming water first collects heat from the cooler exhaust, then reaches the main exchanger. Cooling that exhaust produces liquid called condensate.
Follow the incoming-water line through this exchanger first. It picks up heat that would otherwise leave with the exhaust, then continues to the main heating section.
05 / Supply air and carry exhaust away
The fan brings air to the burner and moves exhaust through the vent to outdoors. Pipe size, route and length affect how freely that air can move.
The technician checks the intake and exhaust for blockage, damage and loose connections, then compares the vent material and route with the heater’s manual.
06 / Remove the liquid
Cooling the exhaust produces acidic water called condensate. It leaves through a drain, with a neutralizer where required to reduce its acidity before disposal.
What service checks: drainage, blockage, leakage, freeze exposure and any required neutralizer. A neutralizer treats the acidity of the condensate before disposal.
07 / Make maintenance possible
The shutoffs isolate the heater. The capped service ports let a technician connect flushing equipment. Mineral buildup, called scale, can restrict water passages and heat transfer.
The service ports let cleaning fluid circulate through the heater during descaling. The relief-valve branch stays connected to the heater above the water shutoff, giving pressure a way out. Keep its discharge pipe open.
08 / Coordinate the heater
The control uses sensor readings to manage heating. An error code records a detected condition for the technician to investigate. Match the code to the exact model.
The error code points to the condition the control detected. Comparing sensor readings with the manual’s expected values helps locate the failed step in the heating sequence.
Teaching cutaway based on the Navien NPE-240S2. Colored overlays trace the flow, and each heating stage pauses for inspection. The internal sections and external piping are simplified for the lesson. Equipment reference ↗ · Model manuals & piping drawings ↗
Capacity, in plain English
Flow rate means gallons passing through each minute, abbreviated GPM. Temperature rise means how many degrees the heater adds. Water entering at 40°F and leaving at 120°F needs an 80°F rise.
Colder incoming water reduces how much hot water a heater can deliver per minute. Size it from the manufacturer’s flow chart at the needed rise and the taps used together.
Try a worked sizing example →Comfort, in plain English
The cooled water already in the pipe still has to leave before hot water arrives. Recirculation uses a pump and a return path to reduce that wait. Compatibility and controls matter.
Gas units also need electricity for their controls. Whole-home electric tankless uses heating elements and can require substantial electrical capacity.
DOE guide: sizing, delivery & electrical supply ↗Gas tankless heaters come in condensing and non-condensing designs. This condensing model adds an exchanger to recover exhaust heat. Electric tankless heaters warm the water with electric elements. Some models also include a small buffer tank or a pump that circulates hot water through the home.
Use the model-specific code tool for a fault. Follow the manufacturer’s maintenance schedule and water-quality requirements for service.
Look up a tankless error code →Compare hot-water demand, gas or electrical capacity, venting, drainage and service access before choosing equipment.
Plan an installation →Understand service

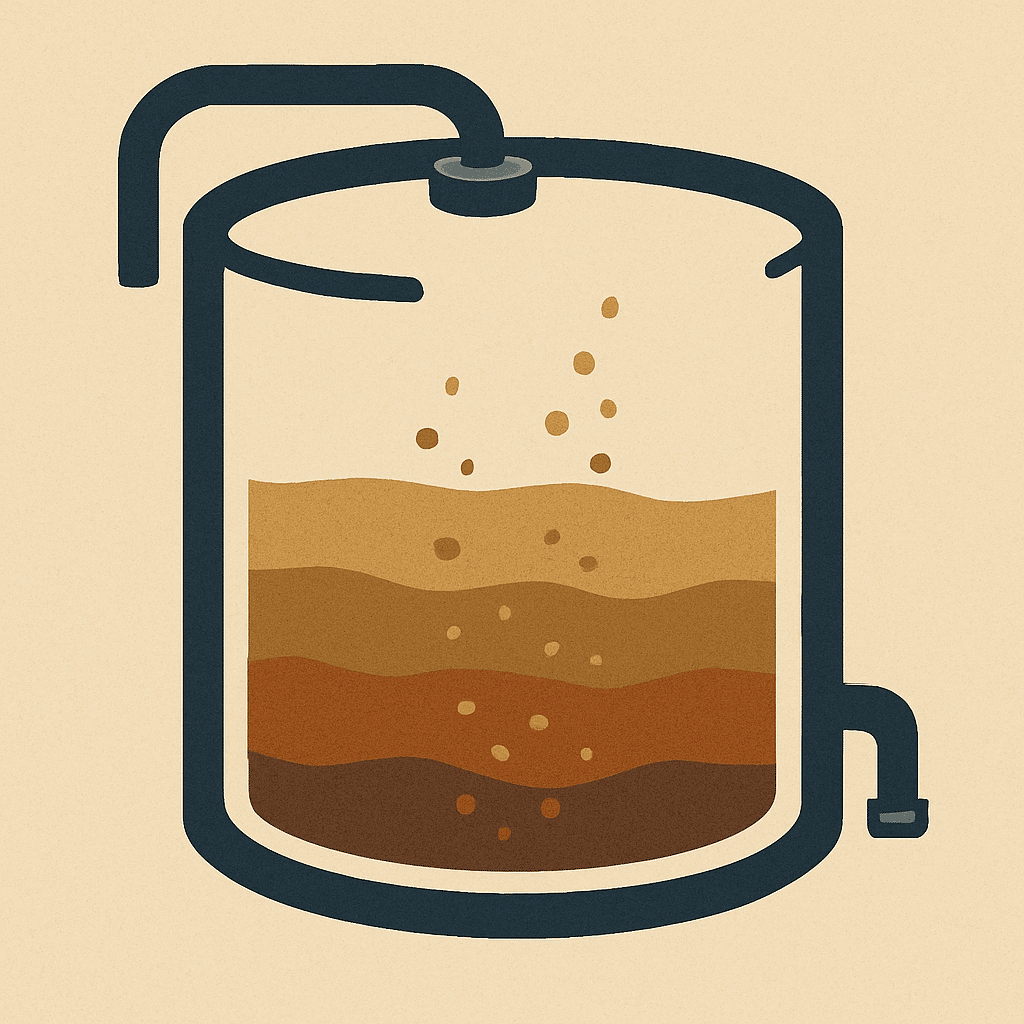

Flushing carries loose sediment out through the tank’s drain valve. That sediment collects at the bottom, where it can contribute to rumbling and interfere with heating. The amount of buildup and condition of the drain valve affect how well flushing works.
During service, we follow the heater’s flushing procedure, inspect the drain valve for leaks and check heating afterward.
Descaling circulates a compatible cleaning solution through the heater’s water passages to remove mineral deposits. The model’s maintenance instructions give the method and solution. Service also includes checking the inlet filter, air path and condensate drain.
Navien NPE-2 owner’s manual: maintenance and troubleshooting ↗Keep the air path and filter clean and the condensate drain clear. A blocked filter affects heat transfer; a blocked drain can look like a plumbing leak. The manufacturer specifies the schedule and any access or isolation steps.
ENERGY STAR: heat-pump servicing ↗Compare hot and cold water at the same faucet. Odor that appears after heating can involve the water chemistry and the anode, a metal rod that protects the tank by corroding in its place. Treatment should address the odor while preserving that tank protection.
Rumbling while heating and a bang when a valve closes are different clues. Record when the sound occurs. A gas odor in the room is a separate emergency: leave and contact emergency help from outside.
A. O. Smith: odor, anodes and water chemistry ↗Model and serial, reported symptom, water-quality findings where relevant, work performed, observed defects, measurements before and after, and the next recommended service date. Tie the interval to the manual and conditions at the property.
Trace a performance complaint → · Understand a drip or pressure problem →
The factory label
The manufacture date is usually hidden in the serial number. Every brand hides it differently.
The serial is the only required field. The model helps us confirm size, fuel, and warranty context. If the label is hard to read, the booking form accepts a photo.
Our label library covers 14,062 documented models across 82 brands. The same label helps us identify the heater, check parts, and discuss replacement options.
Copy every letter and number from the factory label. Add the full model number to help resolve an unclear date code.
Why Utah prices can look different
Utah limits emissions from natural-gas water heaters in mapped air-quality areas. Start with the address, then check the fuel and exact model.
Why the address changes the equipment
Check the location first. Utah’s emissions rule covers natural-gas heaters in mapped air-quality areas. It does not cover electric or propane heaters. The boundary does not simply follow city or ZIP lines.
Loading the Utah boundary…
Your answer
We’ll check whether the location is inside the saved air-quality boundary.
Check the model before comparing prices
Two 50-gallon tanks can have different burners. For a natural-gas heater inside the boundary, check the exact model’s emissions label against the limit for its burner size and use. The map cannot check the heater for you.
What about the heater I already own?
Being inside the map does not mean a working heater must come out. This rule concerns sales and installations. Older equipment and some special uses have exceptions; check those before choosing a replacement.
What Ultra-Low NOx means
NOx means nitrogen oxides, gases that form when fuel burns and contribute to air pollution. Ultra-Low NOx describes a burner designed to keep those emissions low.
We check the address, fuel and model together. Near a boundary, confirm the location on the current DEQ map. Utah DEQ map and guidance · Read the equipment rule.
The map checks the location. Utah’s rule is for natural-gas heaters; electric and propane are excluded. Check the burner size and exact model’s emissions label too.
Utah requires water heaters to resist earthquake displacement, with restraints in the upper and lower thirds of the tank. Those restraints need secure connections to the building structure.
Before replacing the valve, check water pressure and thermal expansion. The temperature-and-pressure relief discharge must never be capped or plugged.
Use the local water report to plan. Use an on-site tap test before making final treatment or maintenance decisions.
Programs change by year and qualifying model. Check the current ThermWise requirements after a heater is selected.
Pressure control, venting, restraint, clearances, and the existing piping all affect the finished installation.
Repair or replace
If the tank is dry, find the failed part and price the repair before deciding.
Repair can make sense
A valve, fitting, control, element, or connection may be the repair. Age and warranty still affect whether the repair is a good investment.
Replacement moves forward
A failed pressure vessel calls for replacement. Water on the outer cover or at the base can have another source, so establish the leak location first.
Some problems need a diagnostic visit. We trace moisture, check faults that come and go, and test the venting or electrical components involved before quoting the repair.
Sizing the replacement
Count the fixtures you use together and how long they run. For a tank, we also look at storage capacity and recovery: how quickly it heats the next batch of water.
Tank size tells you how much hot water is stored. The burner or elements decide how quickly more hot water is ready while the house is using it. Compare both when choosing a heater.
A tankless heater has to handle the fixtures running at the same time and how cold the incoming water is. Use the model’s flow rating at the temperature rise required in your home.
Confirm the label, fuel, capacity, vent, and visible installation conditions before a matched package appears.
Identify my current heater →Match household demand to the model’s storage and recovery performance.
See how much hot water I need →Check the hot-water flow you need, how cold the incoming water gets, and the heater’s gas and venting requirements. Include its maintenance schedule in the decision.
See if tankless can keep up →Tankless code finder
Add the exact model so we can match the code to the right manufacturer manual.
We check your heater against 2,546 tankless model records across 27 brand labels to find the matching code explanation and manufacturer manual.
Copy the complete model and code, including letters and prefixes. The finder will flag a missing model or an unconfirmed match.
See why the exact model matters →Translate the estimate
Look up the part name, what it does, and why it may belong on the job.
Straight answers
Start with the problem. Then use the label, age, and installation to decide what makes sense.
No. Start with the symptom. The model and serial make the answer more specific, but they should not stop you from getting help.
A sound tank with a replaceable failed component can still be worth repairing. Compare the repair cost with tank condition, parts availability and the hot water your household needs.
Not until we find where the water starts. A top fitting, relief pipe, drain valve, nearby pipe, or condensation can leave water at the base. A leak through the inner steel tank is different from water on its outer cover.
Utah gas-heater rules can change across air-quality boundaries that do not follow ZIP codes. The address also tells us which local requirements apply before we choose equipment.
Once the failed part is identified, we can price its repair. Label and installation photos also help us prepare replacement options for comparison.
